Configure Redundant IPsec VPN with SD-WAN




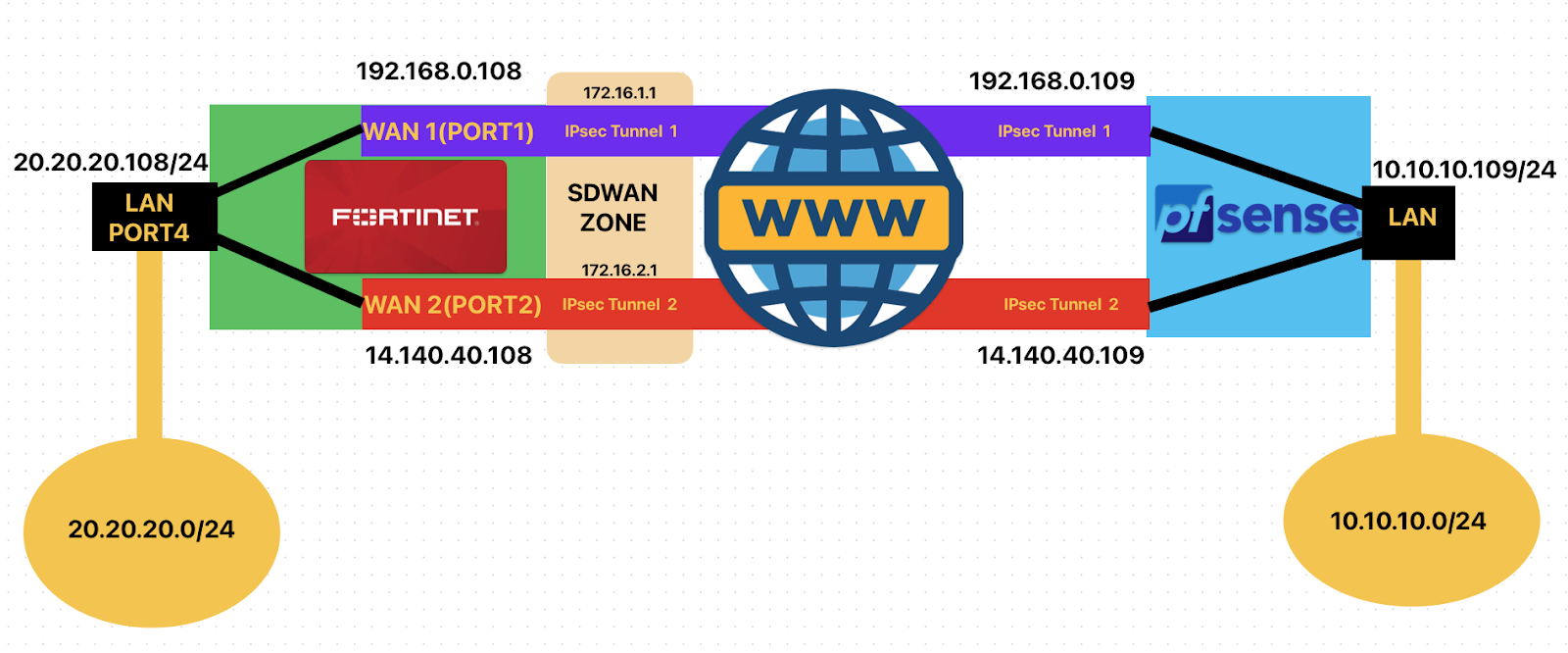

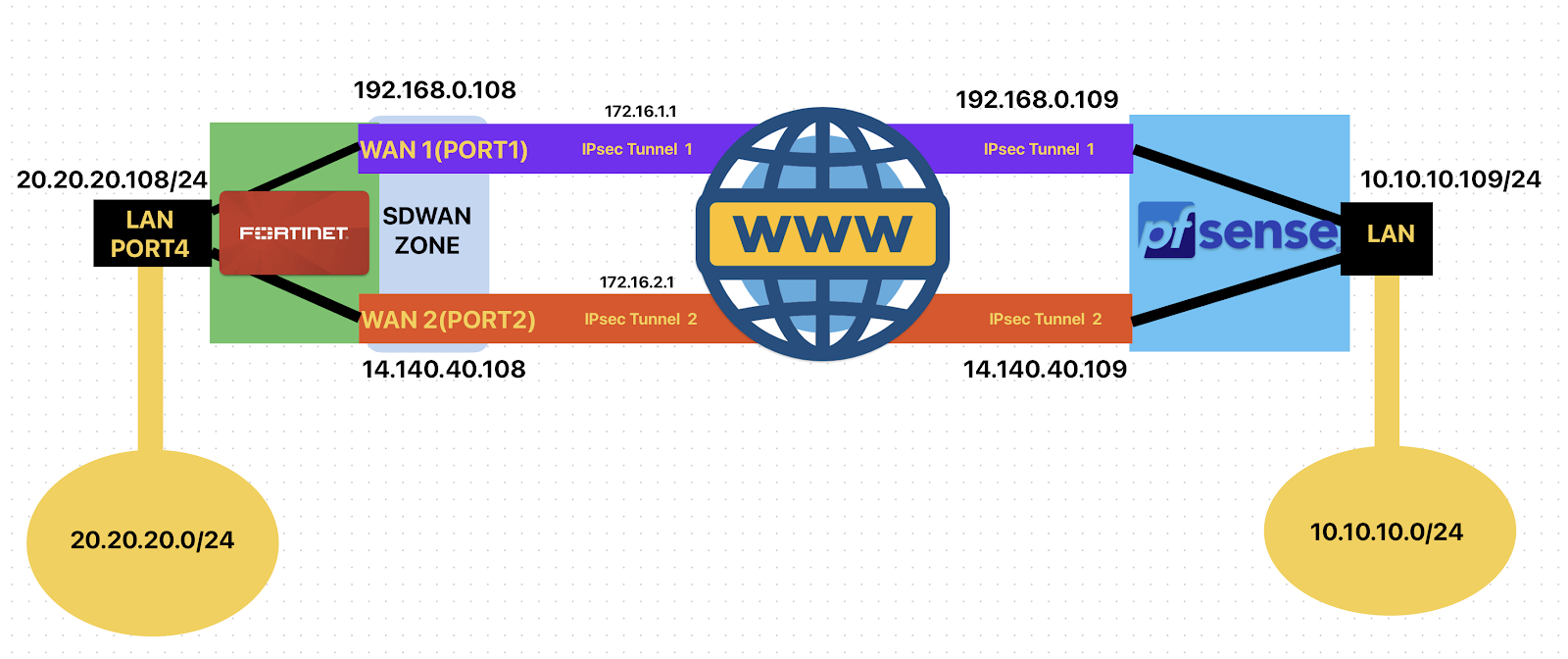

IPsec Tunnel Interface:

config system interface
    edit "tun1-isp1"
        set vdom "root"
        set ip 172.16.1.1 255.255.255.255
        set allowaccess ping
        set type tunnel
        set remote-ip 172.16.1.2 255.255.255.0
        set snmp-index 9
        set interface "port1"
    next
end
config system interface
    edit "tun2-isp2"
        set vdom "root"
        set ip 172.16.2.1 255.255.255.255
        set allowaccess ping
        set type tunnel
        set remote-ip 172.16.2.2 255.255.255.0
        set snmp-index 11
        set interface "port2"
    next
end
config vpn ipsec phase1-interface
    edit "tun1-isp1"
        set interface "port1"
        set peertype any
        set net-device disable
        set proposal aes128-sha256
        set comments "VPN:  -- Created by VPN wizard"
        set wizard-type simplified-static-fortigate
        set nattraversal disable
        set remote-gw 192.168.0.109
        set psksecret ENC R9fCWqyeaUHzp0f6Vdapi/LtD+EPW1DlPJ4yIZD9kWnYa9qZrcH0pOkUcgVj68zE9vtWqWm3THdcvcV/CnZQk37YeY9lWiokdWa3qsvF7pcStqop/gD9ET+pZyCdqFb0RKf56vANDnt1/bydknXG/cOMbGKk2C6o3OwpDUOxJfBJB+4hRJZj+3TB5PoaMAQq19mJBVlmMjY3dkVA
    next
end
config vpn ipsec phase1-interface
    edit "tun2-isp2"
        set interface "port2"
        set peertype any
        set net-device disable
        set proposal aes128-sha256
        set comments "VPN:  -- Created by VPN wizard"
        set wizard-type simplified-static-fortigate
        set nattraversal disable
        set remote-gw 14.140.40.109
        set psksecret ENC yRP0+M+n7aixse7oobG75YVzbJ5YDlbaxmHEgtag1fy+PiGZN60A/UpI8U/o1XnkDx2DyGL/X+QqezlYuAEkW4uGdpn4lzyD+y9JLpSzyGUUk1bshaxMtmjxW5mTlQg6H3/atlMwcIaikq/DDMvGzxP28x0UqzWvzLOX4LFwPuMopcFKFonPVpdVNU/F8TzvmgRvYVlmMjY3dkVA
    next
end
config vpn ipsec phase2-interface
    edit "tun1-isp1"
        set phase1name "tun1-isp1"
        set proposal aes128-sha256
        set auto-negotiate enable
        set comments "VPN:  -- Created by VPN wizard for SD-WAN"
        set src-addr-type name
        set dst-addr-type name
        set src-name "20.20.20.0/24"
        set dst-name "10.10.10.0/24"
    next
    edit "tun2-isp2"
        set phase1name "tun2-isp2"
        set proposal aes128-sha256
        set auto-negotiate enable
        set comments "VPN:  -- Created by VPN wizard for SD-WAN"
        set src-addr-type name
        set dst-addr-type name
        set src-name "20.20.20.0/24"
        set dst-name "10.10.10.0/24"
    next
    edit "tun1-isp1-p2"
        set phase1name "tun1-isp1"
        set proposal aes128-sha256
        set auto-negotiate enable
        set src-addr-type ip
        set dst-addr-type ip
        set src-start-ip 172.16.1.1
        set dst-start-ip 8.8.8.8
    next
    edit "tun2-isp2-p2"
        set phase1name "tun2-isp2"
        set proposal aes128-sha256
        set auto-negotiate enable
        set src-addr-type ip
        set dst-addr-type ip
        set src-start-ip 172.16.2.1
        set dst-start-ip 8.8.8.8
    next
end

SDWAN config:

FG (sdwan) # show
config system sdwan
    set status enable
    config zone
        edit "virtual-wan-link"
        next
    end
    config members
        edit 1
            set interface "tun1-isp1"
        next
        edit 2
            set interface "tun2-isp2"
            set priority 2
        next
    end

SDWAN SLA:

    config health-check
        edit "Monitor_SLA"
            set server "8.8.8.8"
            set interval 30
            set failtime 3
            set recoverytime 3
            set members 1 2
        next
    end

SDWAN Policy:

    config service
        edit 1
            set name "SDWAN-rule"
            set dst "10.10.10.0/24"
            set src "20.20.20.0/24"
            set priority-members 1 2
            set priority-zone "virtual-wan-link"
        next
    end
end

Firewall Policy:

config firewall policy
    edit 1
        set name "SD_WAN_ALLOW_OUT"
        set uuid 6d14ed54-6a72-51ef-801e-eafdb8bd0224
        set srcintf "port4"
        set dstintf "virtual-wan-link"
        set action accept
        set srcaddr "20.20.20.0/24"
        set dstaddr "10.10.10.0/24"
        set schedule "always"
        set service "ALL"
    next
end
config firewall policy
    edit 2
        set name "SDWAN_ALLOW_IN"
        set uuid 92244ad6-6a72-51ef-2e44-c926d9a54e6b
        set srcintf "virtual-wan-link"
        set dstintf "port4"
        set action accept
        set srcaddr "10.10.10.0/24"
        set dstaddr "20.20.20.0/24"
        set schedule "always"
        set service "ALL"
    next
end

Static Route:

config router static
    edit 1
        set distance 1
        set sdwan-zone "virtual-wan-link"
    next
end
