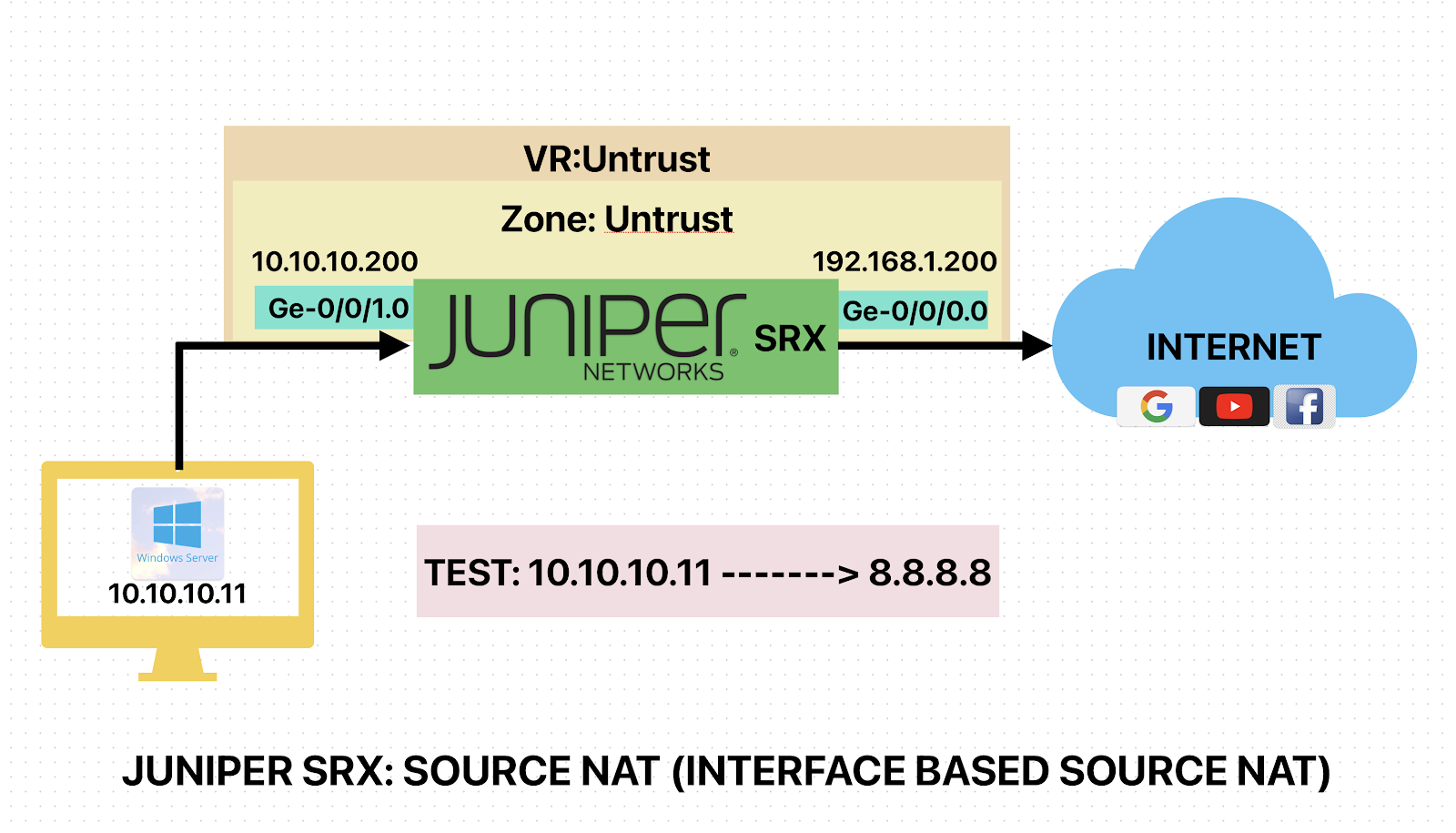

JUNIPER SRX: SOURCE NAT (INTERFACE BASED SOURCE NAT)




#########NAT Configuration########


>set security nat source rule-set NAT-IBN description source_nat


>set security nat source rule-set NAT-IBN from zone untrust


>set security nat source rule-set NAT-IBN to zone untrust


>set security nat source rule-set NAT-IBN rule NAT-IBN-Rule description NAT_IBN_Rule


>set security nat source rule-set NAT-IBN rule NAT-IBN-Rule match source-address 10.10.10.11/32


>set security nat source rule-set NAT-IBN rule NAT-IBN-Rule match destination-address 0.0.0.0/0


>set security nat source rule-set NAT-IBN rule NAT-IBN-Rule then source-nat interface


#######Firewall Policy configuration#########


>set security policies from-zone untrust to-zone untrust policy allow-win-server match source-address 10.10.10.11


>set security policies from-zone untrust to-zone untrust policy allow-win-server match destination-address any


>set security policies from-zone untrust to-zone untrust policy allow-win-server match application any


>set security policies from-zone untrust to-zone untrust policy allow-win-server then permit


>set security zones security-zone untrust address-book address 10.10.10.11 10.10.10.11/32


#######Static Route configuration#########


set routing-instances untrust routing-options static route 0.0.0.0/0 next-hop 192.168.1.1
